O-RING S : HANSUNG Tech

Products - 오링 / 엑스링 / 백업링

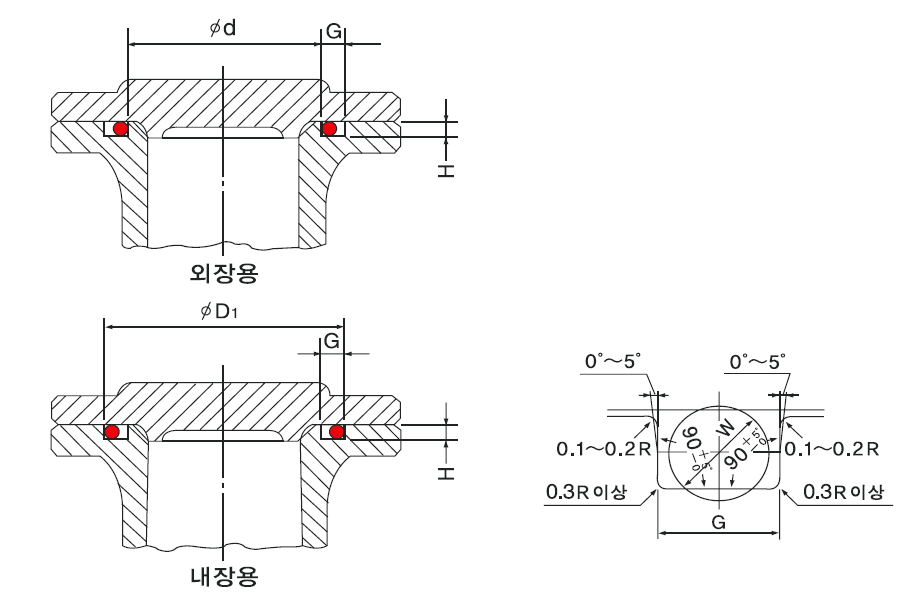

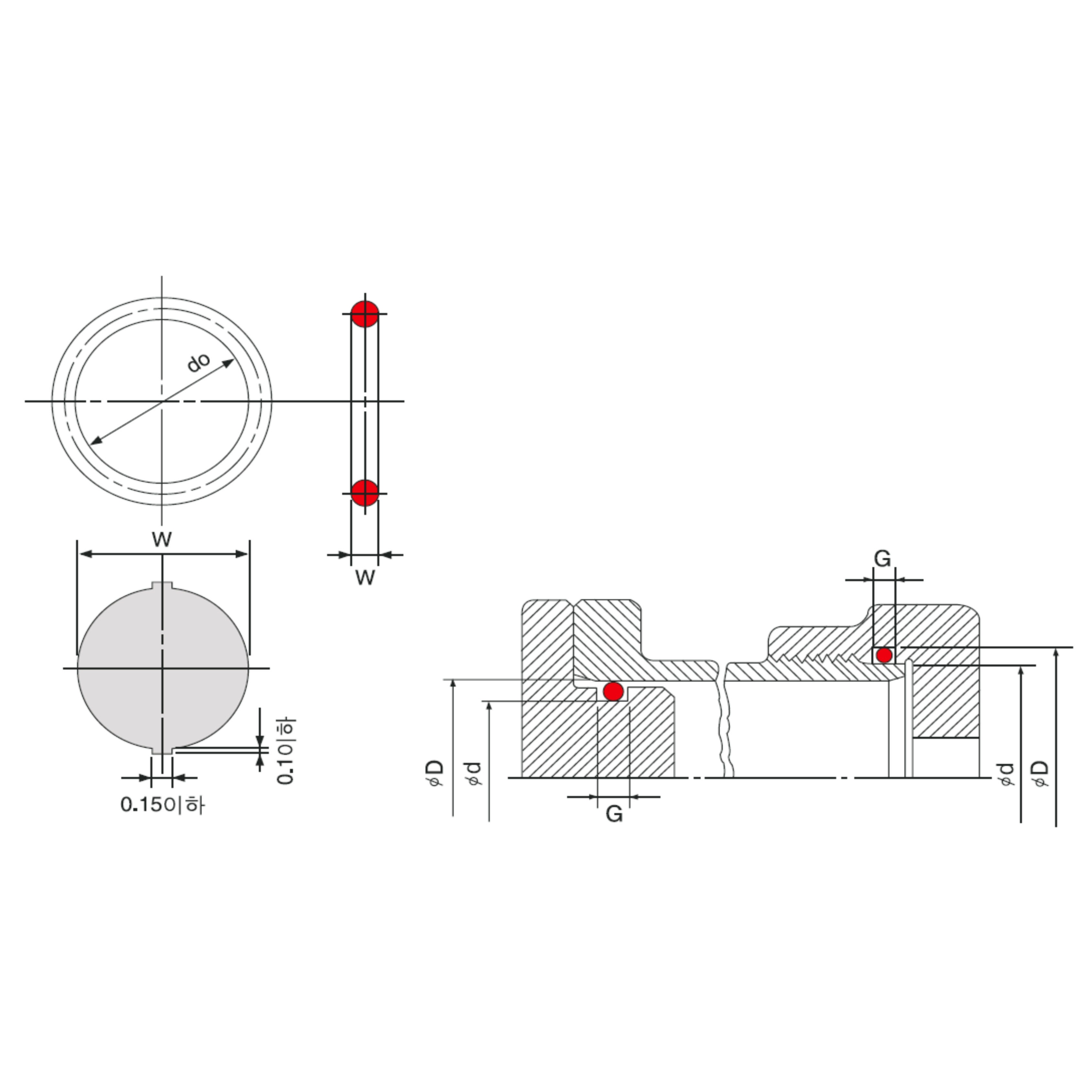

PRODUCT		CODE	SIZE		HOUSING DIMENSION
			ID	T	Ød	ØD	Ød	G	H
			ID	T	Ød	ØD	Ød	O-RING	H
O-RING	S	S3	2.5	1.5	3	5	5.3	2.5	1
O-RING	S	S4	3.5	1.5	4	6	6.3	2.5	1
O-RING	S	S5	4.5	1.5	5	7	7.3	2.5	1
O-RING	S	S6	5.5	1.5	6	8	8.3	2.5	1
O-RING	S	S7	6.5	1.5	7	9	9.3	2.5	1
O-RING	S	S8	7.5	1.5	8	10	10.3	2.5	1
O-RING	S	S9	8.5	1.5	9	11	11.3	2.5	1
O-RING	S	S10	9.5	1.5	10	12	12.3	2.5	1
O-RING	S	S11	10.5	1.5	11	13	13.3	2.5	1
O-RING	S	S11.2	10.7	1.5	11.2	13.2	13.5	2.5	1
O-RING	S	S12	11.5	1.5	12	14	14.3	2.5	1
O-RING	S	S12.5	12	1.5	12.5	14.5	14.8	2.5	1
O-RING	S	S14	13.5	1.5	14	16	16.3	2.5	1
O-RING	S	S15	14.5	1.5	15	17	17.3	2.5	1
O-RING	S	S16	15.5	1.5	16	18	18.3	2.5	1
O-RING	S	S18	17.5	1.5	18	20	20.3	2.5	1
O-RING	S	S19	18.5	1.5	19	21	21.3	2.5	1
O-RING	S	S20	19.5	1.5	20	22	22.3	2.5	1
O-RING	S	S22	21.5	1.5	22	24	24.3	2.5	1
O-RING	S	S22.4	21.9	2	22.4	25.4	25.9	2.7	1.5
O-RING	S	S24	23.5	2	24	27	27.5	2.7	1.5
O-RING	S	S25	24.5	2	25	28	28.5	2.7	1.5
O-RING	S	S26	25.5	2	26	29	29.5	2.7	1.5
O-RING	S	S28	27.5	2	28	31	31.5	2.7	1.5
O-RING	S	S29	28.5	2	29	32	32.5	2.7	1.5
O-RING	S	S30	29.5	2	30	33	33.5	2.7	1.5
O-RING	S	S31.5	31	2	31.5	34.5	35	2.7	1.5
O-RING	S	S32	31.5	2	32	35	35.5	2.7	1.5
O-RING	S	S32.5	32	2	32.5	35.5	36	2.7	1.5
O-RING	S	S34	33.5	2	34	37	37.5	2.7	1.5
O-RING	S	S35	34.5	2	35	38	38.5	2.7	1.5
O-RING	S	S35.5	35	2	35.5	38.5	39	2.7	1.5
O-RING	S	S36	35.5	2	36	39	39.5	2.7	1.5
O-RING	S	S38	37.5	2	38	41	41.5	2.7	1.5
O-RING	S	S38.5	38	2	38.5	41.5	42	2.7	1.5
O-RING	S	S39	38.5	2	39	42	42.5	2.7	1.5
O-RING	S	S40	39.5	2	40	43	43.5	2.7	1.5
O-RING	S	S42	41.5	2	42	45	45.5	2.7	1.5
O-RING	S	S44	43.5	2	44	47	47.5	2.7	1.5
O-RING	S	S45	44.5	2	45	48	48.5	2.7	1.5
O-RING	S	S46	45.5	2	46	49	49.5	2.7	1.5
O-RING	S	S48	47.5	2	48	51	51	2.7	1.5
O-RING	S	S50	49.5	2	50	53	53	2.7	1.5
O-RING	S	S53	52.5	2	53	56	56	2.7	1.5
O-RING	S	S55	54.5	2	55	58	58	2.7	1.5
O-RING	S	S56	55.5	2	56	59	59	2.7	1.5
O-RING	S	S60	59.5	2	60	63	63	2.7	1.5
O-RING	S	S62	61.5	2	62	65	65	2.7	1.5
O-RING	S	S63	62.5	2	63	66	66	2.7	1.5
O-RING	S	S65	64.5	2	65	68	68	2.7	1.5
O-RING	S	S67	66.5	2	67	70	70	2.7	1.5
O-RING	S	S70	69.5	2	70	73	73	2.7	1.5
O-RING	S	S71	70.5	2	71	74	74	2.7	1.5
O-RING	S	S75	74.5	2	75	78	78	2.7	1.5
O-RING	S	S80	79.5	2	80	83	83	2.7	1.5
O-RING	S	S85	84.5	2	85	88	88	2.7	1.5
O-RING	S	S90	89.5	2	90	93	93	2.7	1.5
O-RING	S	S95	94.5	2	95	98	98	2.7	1.5
O-RING	S	S100	99.5	2	100	103	103	2.7	1.5
O-RING	S	S105	104.5	2	105	108	108	2.7	1.5
O-RING	S	S110	109.5	2	110	113	113	2.7	1.5
O-RING	S	S112	111.5	2	112	115	115	2.7	1.5
O-RING	S	S115	114.5	2	115	118	118	2.7	1.5
O-RING	S	S120	119.5	2	120	123	123	2.7	1.5
O-RING	S	S125	124.5	2	125	128	128	2.7	1.5
O-RING	S	S130	129.5	2	130	133	133	2.7	1.5
O-RING	S	S132	131.5	2	132	135	135	2.7	1.5
O-RING	S	S135	134.5	2	135	138	138	2.7	1.5
O-RING	S	S140	139.5	2	140	143	143	2.7	1.5
O-RING	S	S145	144.5	2	145	148	148	2.7	1.5
O-RING	S	S150	149.5	2	150	153	153	2.7	1.5

O-RING V O-RING KIT
