Products - 오링 / 엑스링 / 백업링

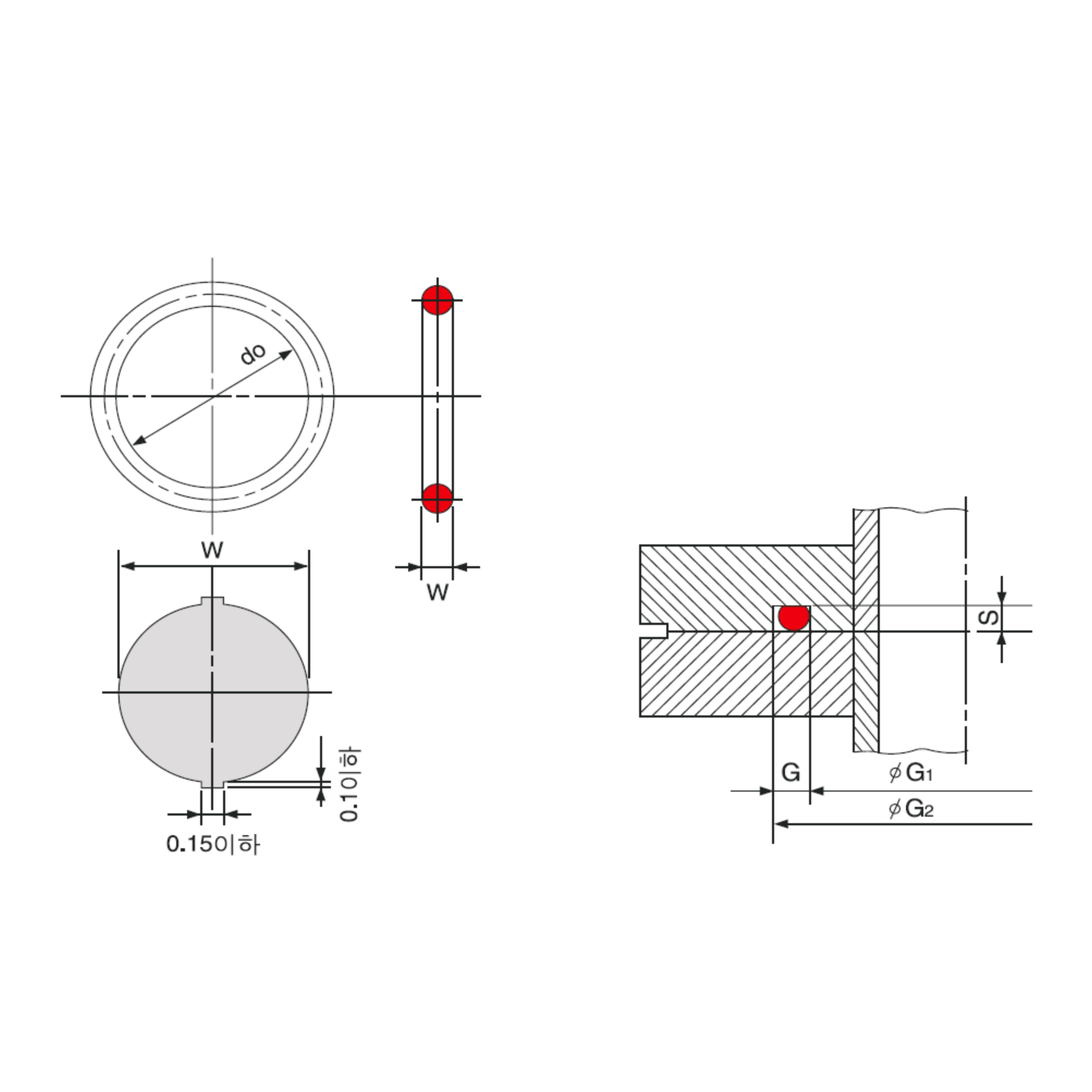

PRODUCT		CODE	SIZE		HOUSING DIMENSION
			ID	T	Ød	ØD1	G	H
			ID	T	Ød	ØD1	O-RING	H
O-RING	V	V9.5	9	4	9.5	19.5	5	3
O-RING	V	v10	9.5	4	10	20	5	3
O-RING	V	v15	14.5	4	15	25	5	3
O-RING	V	v18	17.5	4	18	28	5	3
O-RING	V	v20	19.5	4	20	30	5	3
O-RING	V	v24	23.5	4	24	34	5	3
O-RING	V	v25	24.5	4	25	35	5	3
O-RING	V	v27.5	27	4	27.5	37.5	5	3
O-RING	V	v28.5	28	4	28.5	38.5	5	3
O-RING	V	v30	29.5	4	30	40	5	3
O-RING	V	v34	34.5	4	35	45	5	3
O-RING	V	v35	35.5	4	36	46	5	3
O-RING	V	v40	39.5	4	40	50	5	3
O-RING	V	v45	44.5	4	45	55	5	3
O-RING	V	v48.5	48	4	48.5	58.5	5	3
O-RING	V	v50	49.5	4	50	60	5	3
O-RING	V	v55	54.5	4	55	65	5	3
O-RING	V	v57.5	57	4	57.5	67.5	5	3
O-RING	V	v60	59.5	4	60	70	5	3
O-RING	V	v65	64.5	4	65	75	5	3
O-RING	V	v70	69	4	70	80	5	3
O-RING	V	v75	74	4	75	85	5	3
O-RING	V	v80	79	4	80	90	5	3
O-RING	V	v85	84	4	85	95	5	3
O-RING	V	v90	89	4	90	100	5	3
O-RING	V	v95	94	4	95	105	5	3
O-RING	V	v100	99	4	100	110	5	3
O-RING	V	v105	104	4	105	115	5	3
O-RING	V	v110	109	4	110	120	5	3
O-RING	V	v115	114	4	115	125	5	3
O-RING	V	v120	119	4	120	130	5	3
O-RING	V	v125	124	4	125	135	5	3
O-RING	V	v130	129	4	130	140	5	3
O-RING	V	v135	134	4	135	145	5	3
O-RING	V	v140	139	4	140	150	5	3
O-RING	V	v150	149	4	150	160	5	3
O-RING	V	v160	159	4	160	170	5	3
O-RING	V	v170	169	4	170	180	5	3
O-RING	V	v180	179	4	180	190	5	3
O-RING	V	v185	184	4	185	195	5	3
O-RING	V	v190	189	4	190	200	5	3
O-RING	V	v200	199	4	200	210	5	3
O-RING	V	v225	222.5	6	225	241	8	4.5
O-RING	V	v275	272	6	275	291	8	4.5
O-RING	V	v325	321.5	6	325	341	8	4.5
O-RING	V	v380	376	6	380	396	8	4.5
O-RING	V	v430	425.5	6	430	446	8	4.5
O-RING	V	v480	475	10	480	504	12	7
O-RING	V	v530	524.5	10	530	554	12	7
O-RING	V	v585	579	10	585	609	12	7
O-RING	V	v640	633.5	10	640	664	12	7
O-RING	V	v690	683	10	690	714	12	7
O-RING	V	v740	732.5	10	740	764	12	7
O-RING	V	v790	782	10	790	814	12	7
O-RING	V	v845	836.5	10	845	869	12	7
O-RING	V	v950	940.5	10	950	974	12	7
O-RING	V	v1055	1044	10	1055	1079	12	7

O-RING AS568 O-RING S
