O-RING G : HANSUNG Tech

Products - 오링 / 엑스링 / 백업링

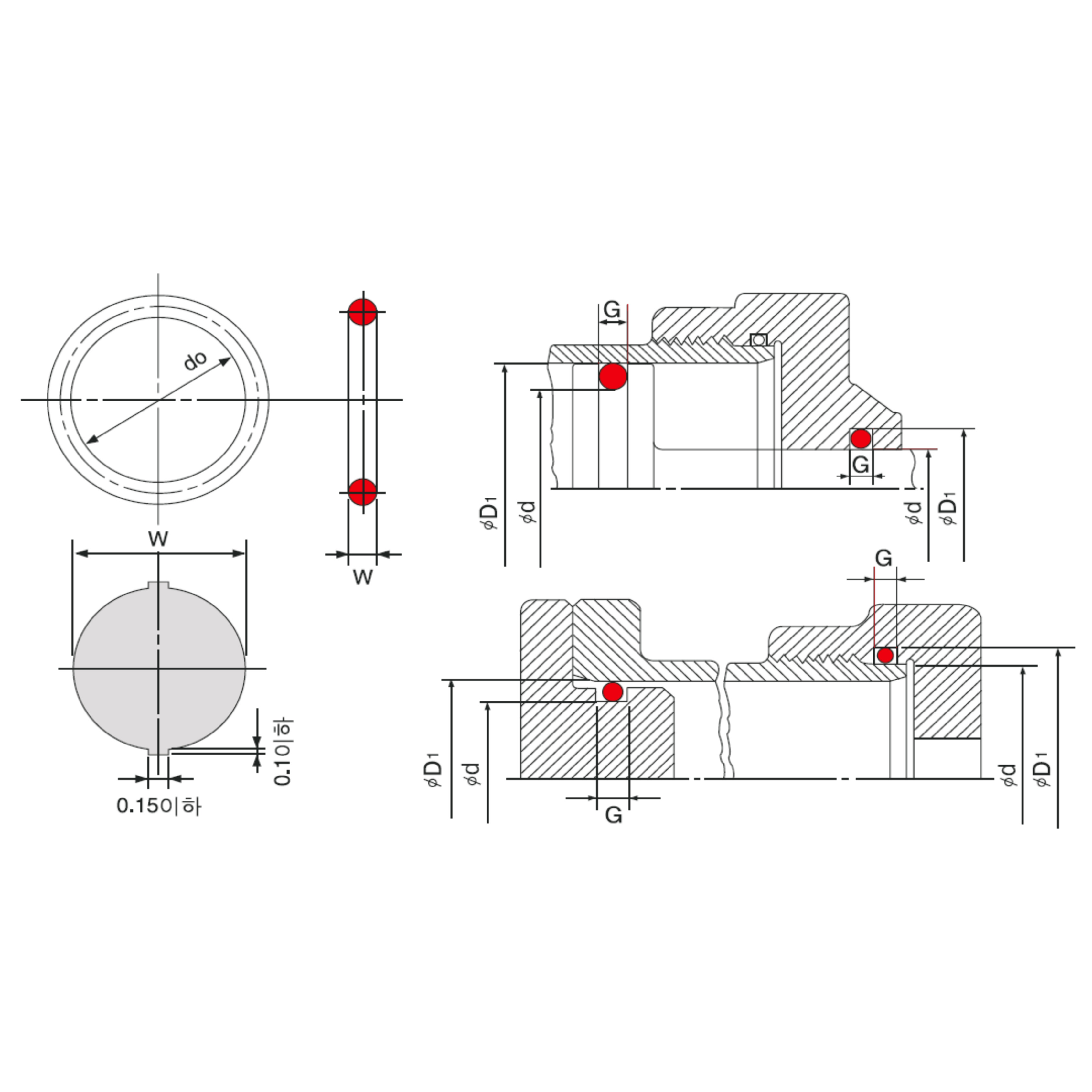

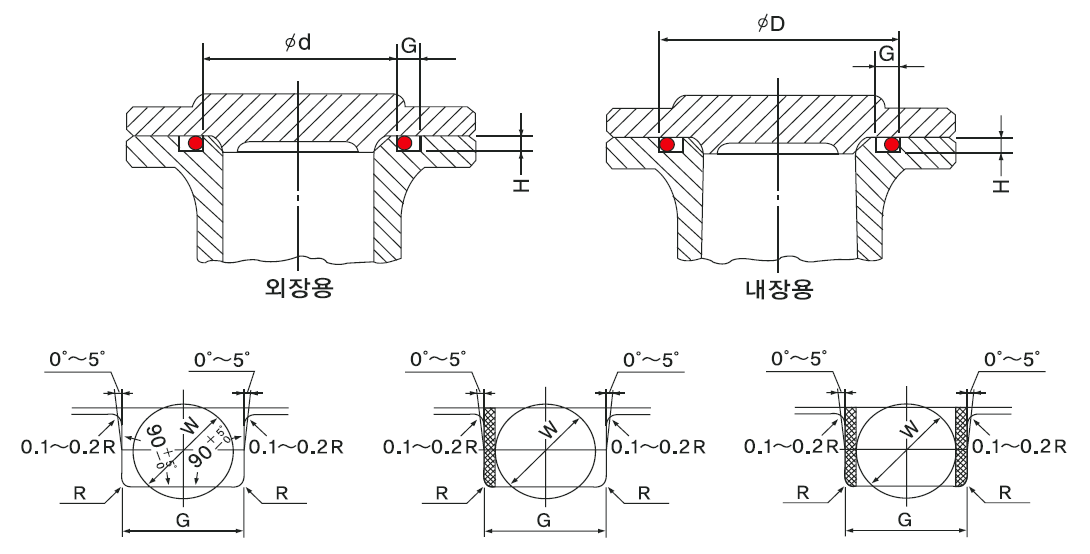

PRODUCT		CODE	SIZE		HOUSING DIMENSION
			ID	T	Ød	ØD1	G			H
			ID	T	Ød	ØD1	O-RING	B.U.R 1EA	B.U.R 2EA	H
O-RING	G	G20	19.4	3.1	20	25	4.1	5.6	7.3	2.4
O-RING	G	G25	24.4	3.1	25	30	4.1	5.6	7.3	2.4
O-RING	G	G30	29.4	3.1	30	35	4.1	5.6	7.3	2.4
O-RING	G	G35	34.4	3.1	35	40	4.1	5.6	7.3	2.4
O-RING	G	G40	39.4	3.1	40	45	4.1	5.6	7.3	2.4
O-RING	G	G45	44.4	3.1	45	50	4.1	5.6	7.3	2.4
O-RING	G	G50	49.4	3.1	50	55	4.1	5.6	7.3	2.4
O-RING	G	G55	54.4	3.1	55	60	4.1	5.6	7.3	2.4
O-RING	G	G60	59.4	3.1	60	65	4.1	5.6	7.3	2.4
O-RING	G	G65	64.4	3.1	65	70	4.1	5.6	7.3	2.4
O-RING	G	G70	69.4	3.1	70	75	4.1	5.6	7.3	2.4
O-RING	G	G75	74.4	3.1	75	80	4.1	5.6	7.3	2.4
O-RING	G	G80	79.4	3.1	80	85	4.1	5.6	7.3	2.4
O-RING	G	G85	84.4	3.1	85	90	4.1	5.6	7.3	2.4
O-RING	G	G90	89.4	3.1	90	95	4.1	5.6	7.3	2.4
O-RING	G	G95	94.4	3.1	95	100	4.1	5.6	7.3	2.4
O-RING	G	G100	99.4	3.1	100	105	4.1	5.6	7.3	2.4
O-RING	G	G105	104.4	3.1	105	110	4.1	5.6	7.3	2.4
O-RING	G	G110	109.4	3.1	110	115	4.1	5.6	7.3	2.4
O-RING	G	G115	114.4	3.1	115	120	4.1	5.6	7.3	2.4
O-RING	G	G120	119.4	3.1	120	125	4.1	5.6	7.3	2.4
O-RING	G	G125	124.4	3.1	125	130	4.1	5.6	7.3	2.4
O-RING	G	G130	129.4	3.1	130	135	4.1	5.6	7.3	2.4
O-RING	G	G135	134.4	3.1	135	140	4.1	5.6	7.3	2.4
O-RING	G	G140	139.4	3.1	140	145	4.1	5.6	7.3	2.4
O-RING	G	G145	144.4	3.1	145	150	4.1	5.6	7.3	2.4
O-RING	G	G150	149.3	5.7	150	160	7.5	9	11.5	4.6
O-RING	G	G155	154.3	5.7	155	165	7.5	9	11.5	4.6
O-RING	G	G160	159.3	5.7	160	170	7.5	9	11.5	4.6
O-RING	G	G165	164.3	5.7	165	175	7.5	9	11.5	4.6
O-RING	G	G170	169.3	5.7	170	180	7.5	9	11.5	4.6
O-RING	G	G175	174.3	5.7	175	185	7.5	9	11.5	4.6
O-RING	G	G180	179.3	5.7	180	190	7.5	9	11.5	4.6
O-RING	G	G185	184.3	5.7	185	195	7.5	9	11.5	4.6
O-RING	G	G190	189.3	5.7	190	200	7.5	9	11.5	4.6
O-RING	G	G195	194.3	5.7	195	205	7.5	9	11.5	4.6
O-RING	G	G200	199.3	5.7	200	210	7.5	9	11.5	4.6
O-RING	G	G205	204.3	5.7	205	215	7.5	9	11.5	4.6
O-RING	G	G210	209.3	5.7	210	220	7.5	9	11.5	4.6
O-RING	G	G215	214.3	5.7	215	225	7.5	9	11.5	4.6
O-RING	G	G220	219.3	5.7	220	230	7.5	9	11.5	4.6
O-RING	G	G225	224.3	5.7	225	235	7.5	9	11.5	4.6
O-RING	G	G230	229.3	5.7	230	240	7.5	9	11.5	4.6
O-RING	G	G235	234.3	5.7	235	245	7.5	9	11.5	4.6
O-RING	G	G240	239.3	5.7	240	250	7.5	9	11.5	4.6
O-RING	G	G245	244.3	5.7	245	255	7.5	9	11.5	4.6
O-RING	G	G250	249.3	5.7	250	260	7.5	9	11.5	4.6
O-RING	G	G255	254.3	5.7	255	265	7.5	9	11.5	4.6
O-RING	G	G260	259.3	5.7	260	270	7.5	9	11.5	4.6
O-RING	G	G265	264.3	5.7	265	275	7.5	9	11.5	4.6
O-RING	G	G270	269.4	5.7	270	280	7.5	9	11.5	4.6
O-RING	G	G275	274.3	5.7	275	285	7.5	9	11.5	4.6
O-RING	G	G280	279.3	5.7	280	290	7.5	9	11.5	4.6
O-RING	G	G285	284.3	5.7	285	295	7.5	9	11.5	4.6
O-RING	G	G290	289.3	5.7	290	300	7.5	9	11.5	4.6
O-RING	G	G295	294.3	5.7	295	305	7.5	9	11.5	4.6
O-RING	G	G300	299.3	5.7	300	310	7.5	9	11.5	4.6
O-RING	G	G305	304.3	5.7	305	315	7.5	9	11.5	4.6
O-RING	G	G310	309.3	5.7	310	320	7.5	9	11.5	4.6
O-RING	G	G315	314.3	5.7	315	325	7.5	9	11.5	4.6
O-RING	G	G320	319.3	5.7	320	330	7.5	9	11.5	4.6
O-RING	G	G325	324.3	5.7	325	335	7.5	9	11.5	4.6
O-RING	G	G330	329.3	5.7	330	340	7.5	9	11.5	4.6
O-RING	G	G335	334.3	5.7	335	345	7.5	9	11.5	4.6
O-RING	G	G340	339.3	5.7	340	350	7.5	9	11.5	4.6
O-RING	G	G345	344.3	5.7	345	355	7.5	9	11.5	4.6
O-RING	G	G350	349.3	5.7	350	360	7.5	9	11.5	4.6
O-RING	G	G355	354.3	5.7	355	365	7.5	9	11.5	4.6
O-RING	G	G360	359.3	5.7	360	370	7.5	9	11.5	4.6
O-RING	G	G365	364.3	5.7	365	375	7.5	9	11.5	4.6
O-RING	G	G370	369.3	5.7	370	380	7.5	9	11.5	4.6
O-RING	G	G375	374.3	5.7	375	385	7.5	9	11.5	4.6
O-RING	G	G380	379.3	5.7	380	390	7.5	9	11.5	4.6
O-RING	G	G385	384.3	5.7	385	395	7.5	9	11.5	4.6
O-RING	G	G390	389.3	5.7	390	400	7.5	9	11.5	4.6
O-RING	G	G395	394.3	5.7	395	405	7.5	9	11.5	4.6
O-RING	G	G400	399.3	5.7	400	410	7.5	9	11.5	4.6
O-RING	G	G410	409.3	5.7	405	415	7.5	9	11.5	4.6
O-RING	G	G420	419.3	5.7	410	420	7.5	9	11.5	4.6
O-RING	G	G430	429.3	5.7	415	425	7.5	9	11.5	4.6
O-RING	G	G440	439.3	5.7	420	430	7.5	9	11.5	4.6
O-RING	G	G450	449.3	5.7	425	435	7.5	9	11.5	4.6
O-RING	G	G460	459.3	5.7	430	440	7.5	9	11.5	4.6
O-RING	G	G470	469.3	5.7	435	445	7.5	9	11.5	4.6
O-RING	G	G480	479.3	5.7	440	450	7.5	9	11.5	4.6
O-RING	G	G490	489.3	5.7	445	455	7.5	9	11.5	4.6
O-RING	G	G500	499.3	5.7	450	460	7.5	9	11.5	4.6
O-RING	G	G510	509.3	5.7	455	465	7.5	9	11.5	4.6
O-RING	G	G520	519.3	5.7	460	470	7.5	9	11.5	4.6
O-RING	G	G530	529.3	5.7	465	475	7.5	9	11.5	4.6
O-RING	G	G540	539.3	5.7	470	480	7.5	9	11.5	4.6
O-RING	G	G550	549.3	5.7	475	485	7.5	9	11.5	4.6
O-RING	G	G560	559.3	5.7	480	490	7.5	9	11.5	4.6
O-RING	G	G570	569.3	5.7	485	495	7.5	9	11.5	4.6
O-RING	G	G580	579.3	5.7	490	500	7.5	9	11.5	4.6
O-RING	G	G590	589.3	5.7	495	505	7.5	9	11.5	4.6
O-RING	G	G600	599.3	5.7	500	510	7.5	9	11.5	4.6
