O-RING P : HANSUNG Tech

Products - 오링 / 엑스링 / 백업링

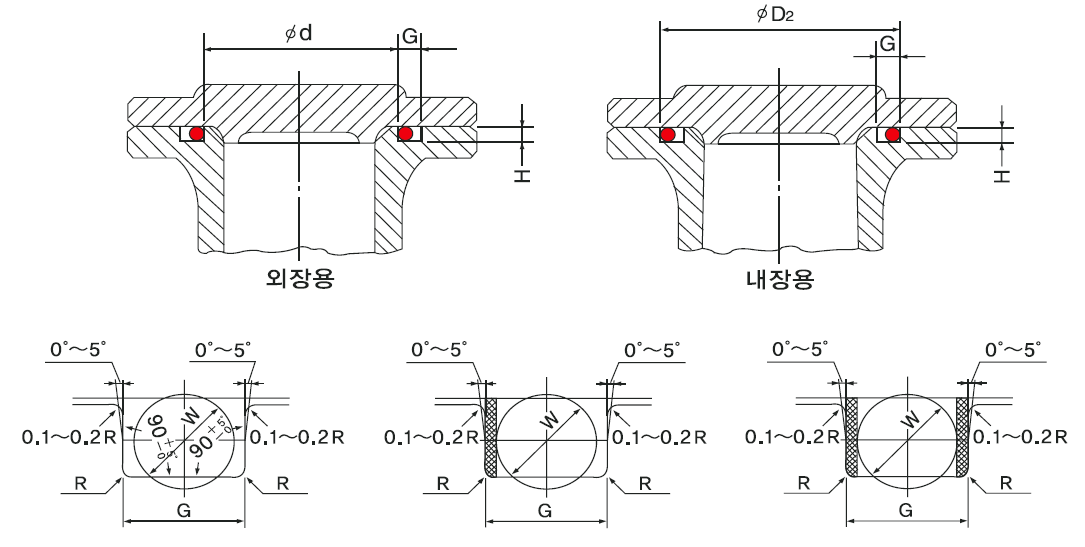

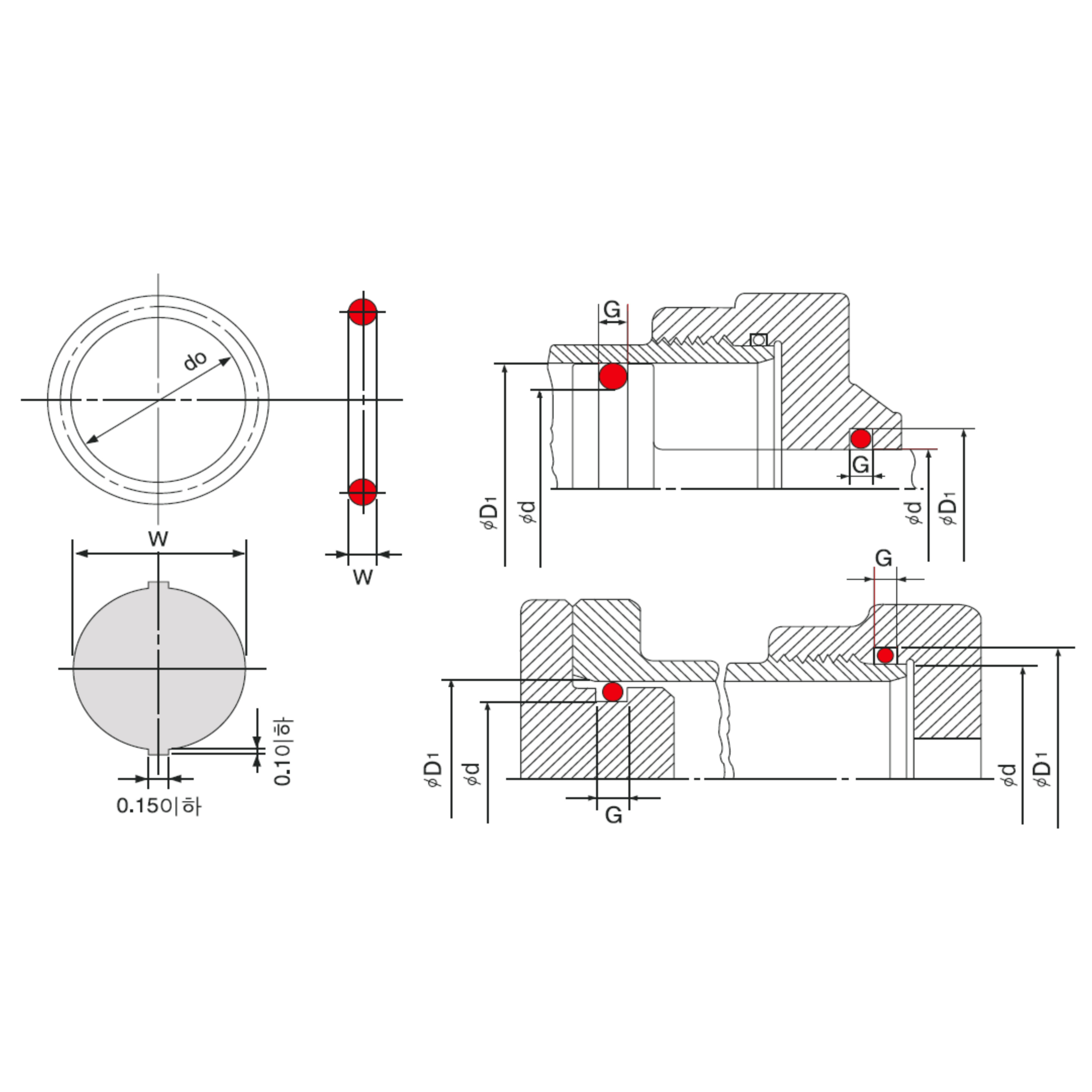

PRODUCT		CODE	SIZE		HOUSING DIMENSION
			ID	T	Ød	ØD1	ØD2	G			H
			ID	T	Ød	ØD1	ØD2	O-RING	B.U.R 1EA	B.U.R 2EA	H
O-RING	P	P3	2.8	1.9	3	6	6.2	2.5	3.9	5.4	1.4
O-RING	P	P4	3.8	1.9	4	7	7.2	2.5	3.9	5.4	1.4
O-RING	P	P5	4.8	1.9	5	8	8.2	2.5	3.9	5.4	1.4
O-RING	P	P6	5.8	1.9	6	9	9.2	2.5	3.9	5.4	1.4
O-RING	P	P7	6.8	1.9	7	10	10.2	2.5	3.9	5.4	1.4
O-RING	P	P8	7.8	1.9	8	11	11.2	2.5	3.9	5.4	1.4
O-RING	P	P9	8.8	1.9	9	12	12.2	2.5	3.9	5.4	1.4
O-RING	P	P10	9.8	1.9	10	13	13.2	2.5	3.9	5.4	1.4
O-RING	P	P10A	9.8	2.4	10	14	13.2	3.2	4.4	6	1.8
O-RING	P	P11	10.8	2.4	11	15	13.2	3.2	4.4	6	1.8
O-RING	P	P11.2	11	2.4	11.2	15.2	13.2	3.2	4.4	6	1.8
O-RING	P	P12	11.8	2.4	12	16	13.2	3.2	4.4	6	1.8
O-RING	P	P12.5	12.3	2.4	12.5	16.5	13.2	3.2	4.4	6	1.8
O-RING	P	P14	13.8	2.4	14	18	13.2	3.2	4.4	6	1.8
O-RING	P	P15	14.8	2.4	15	19	13.2	3.2	4.4	6	1.8
O-RING	P	P16	15.8	2.4	16	20	13.2	3.2	4.4	6	1.8
O-RING	P	P18	17.8	2.4	18	22	13.2	3.2	4.4	6	1.8
O-RING	P	P20	19.8	2.4	20	24	13.2	3.2	4.4	6	1.8
O-RING	P	P21	20.8	2.4	21	25	13.2	3.2	4.4	6	1.8
O-RING	P	P22	21.8	2.4	22	27	13.2	3.2	4.4	6	1.8
O-RING	P	P22A	21.7	3.5	22	28	13.2	4.7	6	7.8	2.7
O-RING	P	P22.4	22.1	3.5	22.4	28.4	13.2	4.7	6	7.8	2.7
O-RING	P	P24	23.7	3.5	24	30	13.2	4.7	6	7.8	2.7
O-RING	P	P25	24.7	3.5	25	31	13.2	4.7	6	7.8	2.7
O-RING	P	P26	25.7	3.5	26	32	13.2	4.7	6	7.8	2.7
O-RING	P	P28	27.7	3.5	28	34	13.2	4.7	6	7.8	2.7
O-RING	P	P29	28.7	3.5	29	35	13.2	4.7	6	7.8	2.7
O-RING	P	P30	29.7	3.5	30	36	13.2	4.7	6	7.8	2.7
O-RING	P	P32	31.7	3.5	32	38	13.2	4.7	6	7.8	2.7
O-RING	P	P34	33.7	3.5	34	40	13.2	4.7	6	7.8	2.7
O-RING	P	P35	34.7	3.5	35	41	13.2	4.7	6	7.8	2.7
O-RING	P	P35.5	35.2	3.5	35.5	41.5	13.2	4.7	6	7.8	2.7
O-RING	P	P36	35.7	3.5	36	42	13.2	4.7	6	7.8	2.7
O-RING	P	P38	37.7	3.5	38	44	13.2	4.7	6	7.8	2.7
O-RING	P	P39	38.7	3.5	39	45	13.2	4.7	6	7.8	2.7
O-RING	P	P40	39.7	3.5	40	46	13.2	4.7	6	7.8	2.7
O-RING	P	P41	40.7	3.5	41	47	13.2	4.7	6	7.8	2.7
O-RING	P	P42	41.7	3.5	42	48	13.2	4.7	6	7.8	2.7
O-RING	P	P44	43.7	3.5	44	50	13.2	4.7	6	7.8	2.7
O-RING	P	P45	44.7	3.5	45	51	13.2	4.7	6	7.8	2.7
O-RING	P	P46	45.7	3.5	46	52	13.2	4.7	6	7.8	2.7
O-RING	P	P48	47.7	3.5	48	54	13.2	4.7	6	7.8	2.7
O-RING	P	P48A	48.7	5.7	48	58	13.2	7.5	9	11.5	4.6
O-RING	P	P49	49.7	3.5	49	55	13.2	4.7	6	7.8	2.7
O-RING	P	P50	47.6	3.5	50	56	13.2	4.7	6	7.8	2.7
O-RING	P	P50A	49.6	5.7	50	60	13.2	7.5	9	11.5	4.6
O-RING	P	P52	51.6	5.7	52	62	13.2	7.5	9	11.5	4.6
O-RING	P	P53	52.6	5.7	53	63	13.2	7.5	9	11.5	4.6
O-RING	P	P55	54.6	5.7	55	65	13.2	7.5	9	11.5	4.6
O-RING	P	P56	55.6	5.7	56	66	13.2	7.5	9	11.5	4.6
O-RING	P	P58	57.6	5.7	58	68	13.2	7.5	9	11.5	4.6
O-RING	P	P60	59.6	5.7	60	70	13.2	7.5	9	11.5	4.6
O-RING	P	P62	61.6	5.7	62	72	13.2	7.5	9	11.5	4.6
O-RING	P	P63	62.6	5.7	63	73	13.2	7.5	9	11.5	4.6
O-RING	P	P65	64.6	5.7	65	75	13.2	7.5	9	11.5	4.6
O-RING	P	P67	66.6	5.7	67	77	13.2	7.5	9	11.5	4.6
O-RING	P	P70	69.6	5.7	70	80	13.2	7.5	9	11.5	4.6
O-RING	P	P71	70.6	5.7	71	81	13.2	7.5	9	11.5	4.6
O-RING	P	P75	74.6	5.7	75	85	13.2	7.5	9	11.5	4.6
O-RING	P	P80	79.6	5.7	80	90	13.2	7.5	9	11.5	4.6
O-RING	P	P85	84.6	5.7	85	95	13.2	7.5	9	11.5	4.6
O-RING	P	P90	89.6	5.7	90	100	13.2	7.5	9	11.5	4.6
O-RING	P	P95	94.6	5.7	95	105	13.2	7.5	9	11.5	4.6
O-RING	P	P100	99.6	5.7	100	110	13.2	7.5	9	11.5	4.6
O-RING	P	P105	104.6	5.7	105	115	13.2	7.5	9	11.5	4.6
O-RING	P	P110	109.6	5.7	110	120	13.2	7.5	9	11.5	4.6
O-RING	P	P112	111.6	5.7	112	122	13.2	7.5	9	11.5	4.6
O-RING	P	P115	114.6	5.7	115	125	13.2	7.5	9	11.5	4.6
O-RING	P	P120	119.6	5.7	120	130	13.2	7.5	9	11.5	4.6
O-RING	P	P125	124.6	5.7	125	135	13.2	7.5	9	11.5	4.6
O-RING	P	P130	129.6	5.7	130	140	13.2	7.5	9	11.5	4.6
O-RING	P	P132	131.6	5.7	132	142	13.2	7.5	9	11.5	4.6
O-RING	P	P135	134.6	5.7	135	145	13.2	7.5	9	11.5	4.6
O-RING	P	P140	139.6	5.7	140	150	13.2	7.5	9	11.5	4.6
O-RING	P	P145	144.6	5.7	145	155	13.2	7.5	9	11.5	4.6
O-RING	P	P150	149.6	5.7	150	160	13.2	7.5	9	11.5	4.6
O-RING	P	P150A	149.5	8.4	150	165	13.2	11	13	17	6.9
O-RING	P	P155	154.5	8.4	155	170	13.2	11	13	17	6.9
O-RING	P	P160	159.5	8.4	160	175	13.2	11	13	17	6.9
O-RING	P	P165	164.5	8.4	165	180	13.2	11	13	17	6.9
O-RING	P	P170	169.5	8.4	170	185	13.2	11	13	17	6.9
O-RING	P	P175	174.5	8.4	175	190	13.2	11	13	17	6.9
O-RING	P	P180	179.5	8.4	180	195	13.2	11	13	17	6.9
O-RING	P	P185	184.5	8.4	185	200	13.2	11	13	17	6.9
O-RING	P	P190	189.5	8.4	190	205	13.2	11	13	17	6.9
O-RING	P	P195	194.5	8.4	195	210	13.2	11	13	17	6.9
O-RING	P	P200	199.5	8.4	200	215	13.2	11	13	17	6.9
O-RING	P	P205	204.5	8.4	205	220	13.2	11	13	17	6.9
O-RING	P	P210	209.5	8.4	210	225	13.2	11	13	17	6.9
O-RING	P	P215	214.5	8.4	215	230	13.2	11	13	17	6.9
O-RING	P	P220	219.5	8.4	220	235	13.2	11	13	17	6.9
O-RING	P	P225	224.5	8.4	225	240	13.2	11	13	17	6.9
O-RING	P	P230	229.5	8.4	230	245	13.2	11	13	17	6.9
O-RING	P	P235	234.5	8.4	235	250	13.2	11	13	17	6.9
O-RING	P	P240	239.5	8.4	240	255	13.2	11	13	17	6.9
O-RING	P	P245	244.5	8.4	245	260	13.2	11	13	17	6.9
O-RING	P	P250	249.5	8.4	250	265	13.2	11	13	17	6.9
O-RING	P	P255	254.5	8.4	255	270	13.2	11	13	17	6.9
O-RING	P	P260	259.5	8.4	260	275	13.2	11	13	17	6.9
O-RING	P	P265	264.5	8.4	265	280	13.2	11	13	17	6.9
O-RING	P	P270	269.5	8.4	270	285	13.2	11	13	17	6.9
O-RING	P	P275	274.5	8.4	275	290	13.2	11	13	17	6.9
O-RING	P	P280	279.5	8.4	280	295	13.2	11	13	17	6.9
O-RING	P	P285	284.5	8.4	285	300	13.2	11	13	17	6.9
O-RING	P	P290	289.5	8.4	290	305	13.2	11	13	17	6.9
O-RING	P	P295	294.5	8.4	295	310	13.2	11	13	17	6.9
O-RING	P	P300	299.5	8.4	300	315	13.2	11	13	17	6.9
O-RING	P	P305	304.5	8.4	305	320	13.2	11	13	17	6.9
O-RING	P	P310	309.5	8.4	310	325	13.2	11	13	17	6.9
O-RING	P	P315	314.5	8.4	315	330	13.2	11	13	17	6.9
O-RING	P	P320	319.5	8.4	320	335	13.2	11	13	17	6.9
O-RING	P	P325	324.5	8.4	325	340	13.2	11	13	17	6.9
O-RING	P	P330	329.5	8.4	330	345	13.2	11	13	17	6.9
O-RING	P	P335	334.5	8.4	335	350	13.2	11	13	17	6.9
O-RING	P	P340	339.5	8.4	340	355	13.2	11	13	17	6.9
O-RING	P	P345	344.5	8.4	345	360	13.2	11	13	17	6.9
O-RING	P	P350	349.5	8.4	350	365	13.2	11	13	17	6.9
O-RING	P	P355	354.5	8.4	355	370	13.2	11	13	17	6.9
O-RING	P	P360	359.5	8.4	360	375	13.2	11	13	17	6.9
O-RING	P	P365	364.5	8.4	365	380	13.2	11	13	17	6.9
O-RING	P	P370	369.5	8.4	370	385	13.2	11	13	17	6.9
O-RING	P	P375	374.5	8.4	375	390	13.2	11	13	17	6.9
O-RING	P	P380	379.5	8.4	380	395	13.2	11	13	17	6.9
O-RING	P	P385	384.5	8.4	385	400	13.2	11	13	17	6.9
O-RING	P	P390	389.5	8.4	390	405	13.2	11	13	17	6.9
O-RING	P	P395	394.5	8.4	395	410	13.2	11	13	17	6.9
O-RING	P	P400	399.5	8.4	400	415	13.2	11	13	17	6.9
O-RING	P	P405	404.5	8.4	405	420	13.2	11	13	17	6.9
O-RING	P	P410	409.5	8.4	410	425	13.2	11	13	17	6.9
O-RING	P	P415	414.5	8.4	415	430	13.2	11	13	17	6.9
O-RING	P	P420	419.5	8.4	420	435	13.2	11	13	17	6.9
O-RING	P	P430	429.5	8.4	430	445	13.2	11	13	17	6.9
O-RING	P	P435	434.5	8.4	435	450	13.2	11	13	17	6.9
O-RING	P	P440	439.5	8.4	440	455	13.2	11	13	17	6.9
O-RING	P	P450	449.5	8.4	450	465	13.2	11	13	17	6.9
O-RING	P	P455	454.5	8.4	455	470	13.2	11	13	17	6.9
O-RING	P	P460	459.5	8.4	460	475	13.2	11	13	17	6.9
O-RING	P	P470	469.5	8.4	470	485	13.2	11	13	17	6.9
O-RING	P	P480	479.5	8.4	480	495	13.2	11	13	17	6.9
O-RING	P	P490	489.5	8.4	490	505	13.2	11	13	17	6.9
O-RING	P	P495	494.5	8.4	495	510	13.2	11	13	17	6.9
O-RING	P	P500	499.5	8.4	500	515	13.2	11	13	17	6.9
